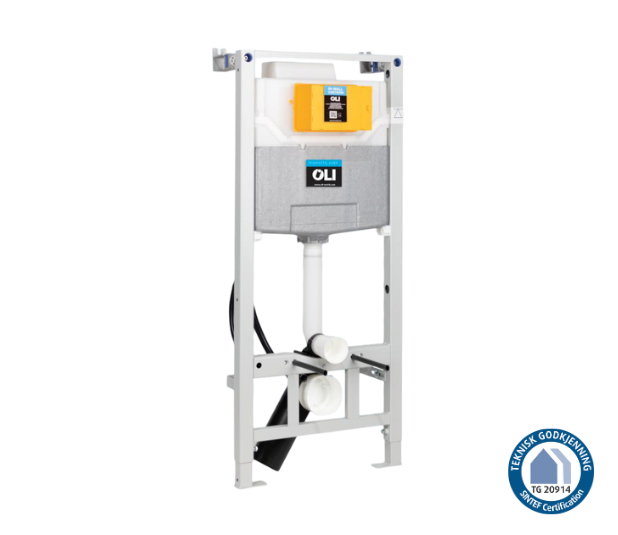

OLI120 Plus N Sanitarblock
In-Wall Installation Systems
OLI120 PLUS N SANITARBLOCK it's a product that is compatible with all types of wall-hung toilets, up to 660mm in length and for all types of application (in drywall, plasterboard wall, solid wall or wood applications).
Prepared for toilet installation with integrated shower system.
Universal application with EPS mould to ensure correct preparation of the plasterboard wall.
3 inlet connections (left, right, top)
“Plus” System that saves up to 9 litres of water per day.
In addition, the OLI120 PLUS SANITARBLOCK is quick and intuitive to install and maintain.
SINTEF Technical Certification
Code . 887456
NOBB . 60656795
NRF . 1382260
Characteristics
Structure
- lacquered tubular corrosion resistant;
- Easy and quick installation;

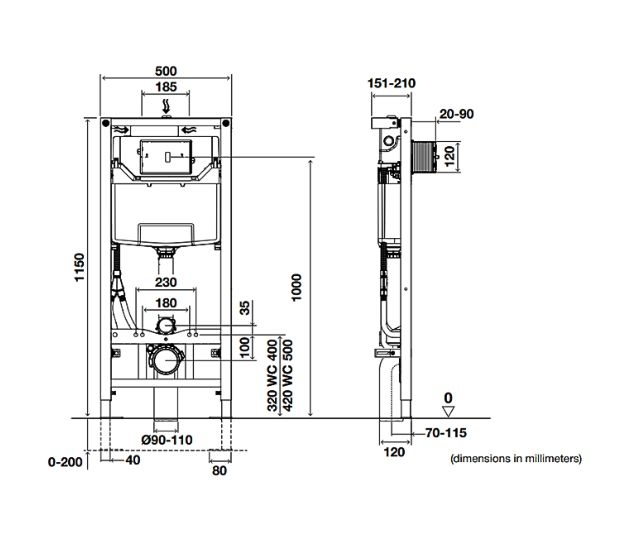

- Minimum thickness of 151 mm and adjustable up to 210 mm;
- Height adjustment of the adjustable floor brackets (0-200 mm);
- Depth-adjustable outlet bend;
- Tested for 400 kg load.
Cistern
- The built-in cistern with dual flush is compatible with either 6/3 litres (adjustable to 4/2 and 7/3);
- 126 mm thickness;
- Mechanical activation;
- Equipped with Azor Plus inlet valve, with delayed filling (saves up to 9 litres of water per day) and silent according to the NF Class I standard;
- Working pressure from 0.1 to 16 bar;
- Resistant to humidity (Hr
- Polypropylene (PP) cistern highly resistant and immutable to thermal stress;
- EN 14055 labelling;
- In accordance with the SINTEF standard;
- Supplied with anti-condensation lining;
- Pipe in pipe connection D18-25mm;
- 3 possible water connections, top, right, left;
- Protection box.
Accessories toilet connection
- 1 Flush pipe ø90 x 250
- 1 Seal for flush pipe ø125
- 1 Connection pipe ø45 x 180
- 1 Rubber gasket ø45
- 1 protective box
- 1 G ½’ stop valve
- 1 Recessed bend ø 90 / 90 L230
- 1 Adapter for outlet bend ø90/110
- 2 threaded rods M12
- 2 Nuts M12
- 2 Protection for threaded rod
- 2 Protective cover
- 2 Centring washers for toilet
- 2 washers Zn ø 34
Fixing accessories to the wall
- 4 galvanised screws DIN571 M8x70
- 4 galvanised washers M8 DIN9021
- 4 Grommet for metal construction M8
- 2 aluminium metal brackets for top fixing 100x40x40
- 2 metal brackets in steel for bottom attachment 150 mm
